My Journey Porting ccache to z/OS for Faster Builds

As a developer in the z/OS zopen community, I’ve lost what feels like countless hours waiting for builds to finish. The build-time bottleneck becomes especially painful in an automated CI/CD pipeline, where an entire team is waiting on a critical fix to be built, verified, and deployed.So, this drove me to find a better way, and my search led me to ccache - a tool that caches your compiles. Seeing its potential, I decided to port it to z/OS and integrate it into the zopen community.

What is ccache and Why Should I Care?

ccache is a compiler cache. Its function is to speed up recompilation by caching the results of previous compilations. When rebuilding software, ccache can provide these cached outputs instead of re-running the compiler, which reduces build time. This results in a much faster development cycle.

How ccache Works

The beauty of ccache is its simplicity. It acts as a “wrapper” that intercepts calls to your real compiler (in my case, IBM Open XL C/C++’s clang compiler). It then quickly determines if it has a valid, cached result from a previous identical compilation.

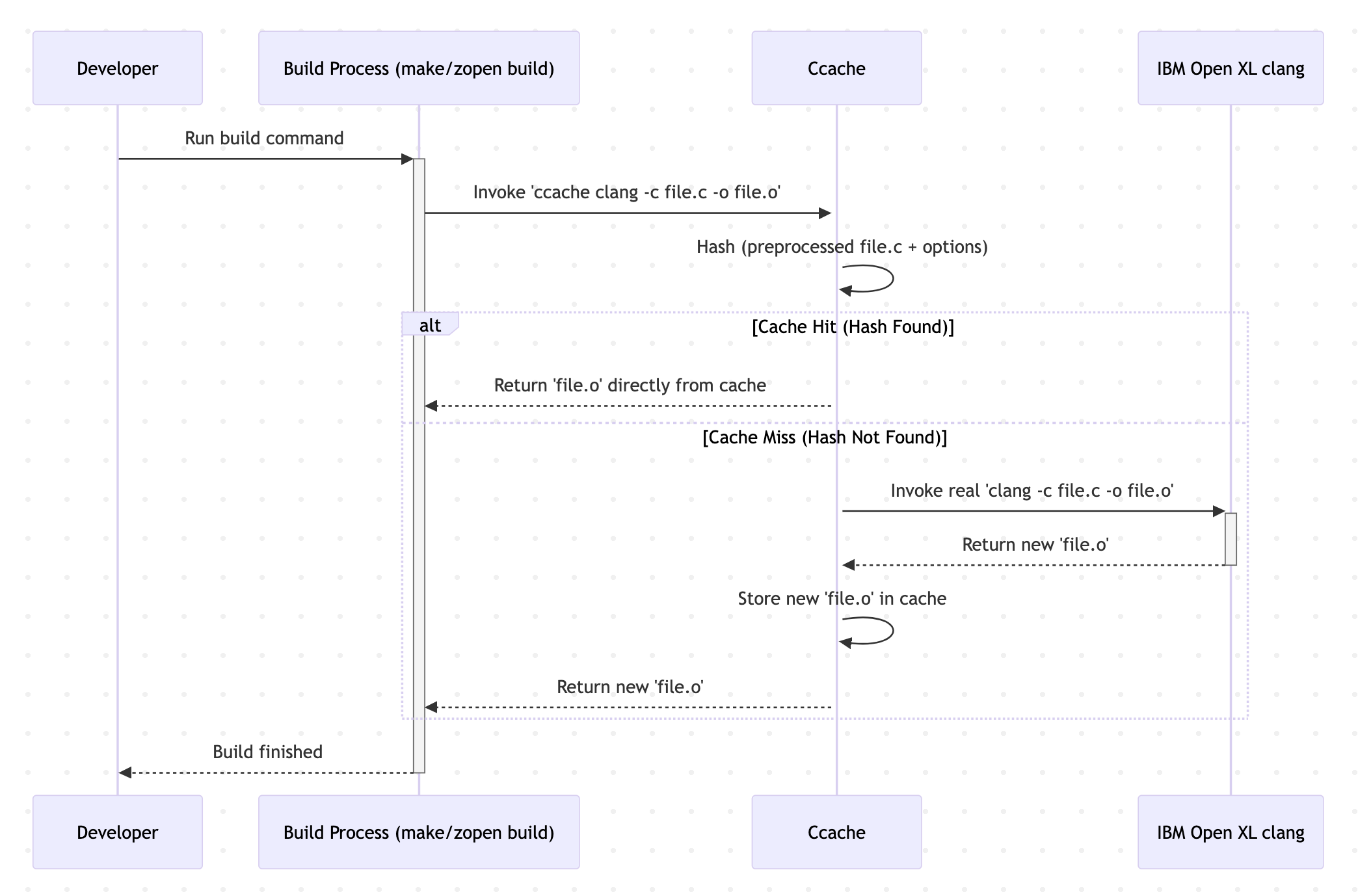

This diagram illustrates the workflow:

The Process

1. Analysis and Hashing: When your build process calls ccache, it analyzes the command and runs the C/C++ preprocessor on your source file. This is a key step because ccache hashes the preprocessed output, meaning it’s fully aware of header file changes.
2. “Cache Hit”: If ccache finds a previously stored object file that matches this exact fingerprint, it simply copies the cached result into place. This is the fast path.
3. “Cache Miss”: If no match is found, ccache calls the real compiler to do the work. Upon success, it saves the new object file into its on-disk cache, ready for next time.

For more in-depth details, visit the official ccache website: https://ccache.dev

Using ccache on z/OS: From Simple to Integrated

There are several ways to leverage ccache. You can use it for a single compilation, integrate it into your own Makefile, or use the seamless support within the zopen build framework.

Simple Usage: Caching a Single File

For a quick test or a one-off compilation, you can simply prefix your compiler command with ccache.

1
2
3
# Instead of: clang -c myprogram.c -o myprogram.o
# Use:
ccache clang -c myprogram.c -o myprogram.o

The first time you run this, ccache will compile and cache the result. The second time, it will be nearly instant.

Manual Integration: Using ccache in a Makefile

For any personal or non-zopen project you build with make, the most common way to use ccache is to set the CC variable in your Makefile. This tells make to use ccache for all C compilations.

1
2
3
4
5
6
7
8
9
10
11
12
# In your Makefile
CC = ccache clang
CFLAGS = -m64 -O3 -g

my_program: main.o utils.o
	$(CC) $(CFLAGS) -o my_program main.o utils.o

main.o: main.c
	$(CC) $(CFLAGS) -c main.c

utils.o: utils.c
	$(CC) $(CFLAGS) -c utils.c

With this setup, every time you run make, the compilation steps will automatically benefit from caching.

My ccache Experiment with the zopen Build Framework

While the manual methods are great, I wanted to test ccache in a fully integrated, realistic scenario as a zopen contributor. The zopen project provides a build framework (zopen build) that automates the entire process, and it has built-in support for ccache via a simple --ccache flag. I used the GNU bash port (bashport) as my test subject.

The Setup

My first step was to clone the bashport repository from the zopen community.

1
2
git clone https://github.com/zopencommunity/bashport.git1G
cd bashport

The Experiment

My experiment was designed to mimic a CI/CD workflow where the workspace is cleaned before each run. I performed three builds:

1. A baseline build without ccache.
2. A build with --ccache on an empty (cold) cache.
3. A second build with --ccache on a populated (warm) cache.

1. The Baseline Test (Without ccache)

First, I timed a standard, full build using zopen build with verbose flags.

1
2
echo "Starting baseline 'zopen build'..."
time zopen build -vv

Baseline Full Build Time:

• real 8m43.963s (approximately 524 seconds)
• The zopen build framework, which times the core build phase separately from configure and install, reported: VERBOSE: build completed in 237 seconds.

This nearly 9-minute wall-clock time, and more specifically the 237-second build phase, became my baseline—the performance I aimed to beat.

2. The ccache Test (Cold Cache)

Next, I removed the build artifacts to simulate a clean workspace and ran the build again, this time adding the --ccache flag. Before this step, it’s important to have the necessary tools. This experiment requires ccache, which you can install via zopen install ccache. You also need a supported compiler. I used the clang compiler provided by IBM Open XL C/C++.

1
2
rm -rf bash-* # remove the bash source/build directory
time zopen build -vv --ccache

Cold ccache Build Time:

• real 9m16.050s (approximately 556 seconds)
• The zopen build framework, which times the core build phase separately from configure and install, reported: VERBOSE: build completed in 251 seconds.

As my results show, the very first build with ccache was slightly slower than the baseline. This is expected! It’s the one-time cost of ccache hashing every single file and populating its cache for the first time. The real magic comes next.

3. The ccache Test (Warm Cache - THE PAYOFF)

This is the most crucial test. It simulates all subsequent builds in a CI pipeline or a developer’s clean rebuild after the cache has been populated. I again removed the build artifacts and re-ran the exact same command.

1
2
3
rm -rf bash-* # remove the bash source/build directory
echo "Starting 'zopen build --ccache' on a warm cache..."
time zopen build -vv --ccache

Warm ccache Build Time:

• real 4m2.766s (approximately 243 seconds)
• The zopen build framework reported: VERBOSE: build completed in 12 seconds.

The results were great! The total time dropped from 8m43s to 4m2s. That’s a 54% reduction (more than 2x faster) in the total time I had to wait!

The framework’s build timer tells an better story: the core build phase, which was 237 seconds in the baseline, dropped to just 12 seconds. This shows that with a warm cache, the time-consuming compilation step was almost entirely eliminated, leaving only the much faster linking step within the build phase. While the configure and install phases took a similar amount of time in each run, the massive speedup in the build phase is what drove this incredible overall improvement.

Managing and Monitoring Your Cache

Using ccache is great, but knowing how to manage it is even better.

• Checking Statistics: To see how effective ccache is, use the -s flag. It provides a human-readable summary of cache hits, misses, cache size, and more.

  1
    ccache -s


• Clearing the Cache: To start completely fresh, you can clear the entire cache.

  1
    ccache -C


• Setting Cache Size: You can control the maximum size of the cache. For example, to set a 5 GB limit:

  1
    ccache -M 5G


Future Considerations

The performance gains from caching C/C++ compilations are clear, but it opens up an exciting question for the z/OS community: Should we consider adding support for traditional z/OS compilers? Imagine the potential productivity boost if ccache could also support languages like COBOL or PL/I. This is a topic worth exploring as we continue to bridge the gap between open-source tooling and traditional mainframe development.
